All-weather speaker system

Fixed Installation Series

The EK 1520 is a coaxial mid-high frequency beam control horn speaker system featuring excellent
directivity (45°×60°). Designed for high-quality outdoor distributed sound reinforcement systems, this all-weather speaker features an industrial resin-molded enclosure providing excellent waterproofing, UV resistance, moisture protection, and mold resistance. A dedicated nickel-plated steel frame facilitates suspension and safeguards the enclosure from damage. The EK 1520 is a coaxial, passive, two-way, two-way crossover loudspeaker. The low/midrange section incorporates a 15-inch low-frequency driver loaded into a mid-high frequency beam control horn. The high-frequency section incorporates a 3-inch compression driver mounted in a 45° x 60° constant directivity horn.

As a full-range loudspeaker system, its frequency response is 45 Hz to 20 kHz (-10 dB). The EK 1520 enclosure is constructed from industrial resin material and features dedicated nickel-plated stainless steel mounting brackets around the perimeter. This design fully meets the safety requirements for permanent outdoor installations.
Item
Specification
Frequency Range
45 Hz ~ 20 kHz ( -10dB)
Coverage Angle (H° x V°)
45°X60°(- 6dB)
Output Power
500 W@AES /1000 W@Peak
Sensitivity (1W, 1m)
101 dB/SPL
Sound pressure level@1m,f>90Hz
132 dB/SPL (Maximum Continuous Sound Pressure Level)
138 dB/SPL (Peak Sound Pressure Level)
Input Impedance
LF: 8Ω
Transducer Configuration
Low-frequency: 1x15" low-frequency transducer (75mm voice coil)
High-frequency: 1x3" diaphragm highfrequency driver
Enclosure Structure
Industrial Resin Materials and
Specialized Nickel-Plated Stainless Steel Mounting Brackets
Color
Standard color is black; other colors are available upon request.
Connectors
2 Speakon NL4MP speaker
connections
Install suspension fittings
Specialized Nickel-Plated Stainless Steel Mounting Bracket
Dimensions (W × D × H)
570 x 570 x 780 mm
Weight
Net weight: 38 kg
Gross weight: 40 kg

EK 1520

Single 15-inch Coaxial All
-Weather Speaker

Precise Coverage – 45° × 60° directivity for accurate outdoor sound reinforcement.

Coaxial Two-Way Design – 15" LF driver + 3" HF compression driver, 45Hz–20kHz response.

All-Weather Enclosure – Industrial resin construction with waterproofing, UV, moisture, and mold resistance.

Durable Outdoor Build – Nickel-plated steel frame and brackets for secure, permanent installation.

The EK Series is primarily designed for fixed installations in outdoor sound reinforcement, stadiums, theme parks, and indoor/outdoor public spaces of small to medium scale. with the option to optimize the speaker's frequency response characteristics using preset digital processors or dedicated analog processors.
Item
Specification
Frequency Range
50 Hz ~ 20 kHz ( -10dB)
Coverage Angle (H° x V°)
45°X60°(- 6dB)
Output Power
400 W@AES /800 W@Peak
Sensitivity (1W, 1m)
97 dB/SPL
Sound pressure level@1m,f>90Hz
128 dB/SPL (Maximum Continuous Sound Pressure Level)
134 dB/SPL (peak sound pressure level)
Input Impedance
LF: 8Ω
Transducer Configuration
Low-frequency: 1x12" low-frequency transducer (75mm voice coil)
High-frequency: 1x1.25" diaphragm high-frequency driver
Enclosure Structure
Industrial Resin Materials and
Specialized Nickel-Plated Stainless Steel Mounting Brackets
Color
Standard color is black; other
colors are available upon request.
Connectors
2 Speakon NL4MP speaker
connections
Install suspension fittings
Specialized Nickel-Plated
Stainless Steel Mounting Bracket

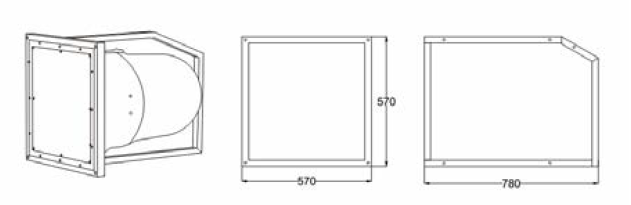

Dimensions (W × D × H)
570 x 570 x 780 mm
Weight
Net weight: 28 kg
Gross weight: 30 kg

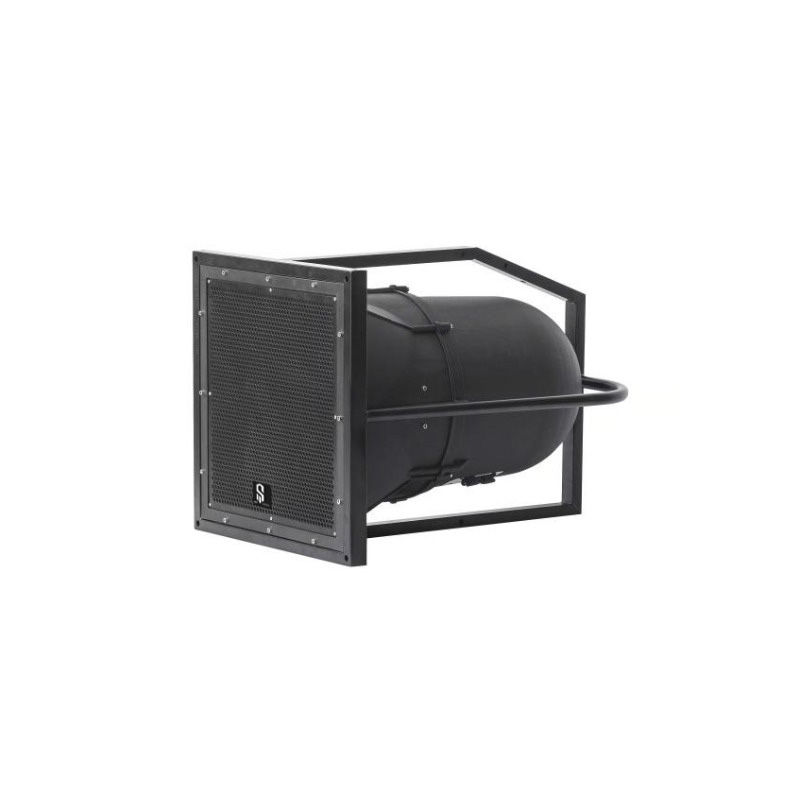

EK 1220

Single 12-inch Coaxial All- Weather Speaker

Controlled Coverage – 45° × 60° directivity for precise outdoor sound reinforcement.

Compact Coaxial Design – 12" LF driver + 1.25" HF compression driver, 50Hz–20kHz response.

All-Weather Enclosure – Resin-molded cabinet with waterproofing, UV, moisture, and mold resistance.

Durable Outdoor Build – Nickel-plated steel frame and brackets ensure safe, permanent installations.
